Kennametal NA3L5 KC850 Carbide Threading Insert TiC/TiCN/TiN Finish, Internal/External, Acme, 5 TPI, Series Top Notch 1113791 - 40623910

Kennametal NA3L5 KC850 Carbide Threading Insert TiC/TiCN/TiN Finish, Internal/External, Acme, 5 TPI, Series Top Notch 1113791 - 40623910

Brand:   Kennametal
SKU:
40623910
ID:
666863
callling
$47.19
Current Stock:
Adding to cart… The item has been added

Kennametal

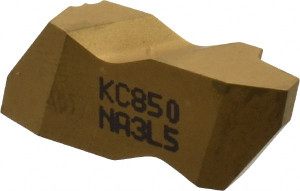

Kennametal NA3L5 KC850 Carbide Threading Insert TiC/TiCN/TiN Finish, Internal/External, Acme, 5 TPI, Series Top Notch

Manufacturer Part #: 1113791

S/N: 40623910

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleNA
Insert MaterialCarbide
Manufacturer GradeKC850
Material GradeC5, C6
Thread StandardAcme
Insert HandLeft Hand
Internal Pitch5 TPI
Included Angle29
SeriesTop Notch
Coating ProcessCVD
Tip to Top of Insert (Decimal Inch)0.1492
Tip to Top of Insert (mm)3.79
Corner Radius (Decimal Inch)0.0690
Corner Radius (mm)0.15
Width of Cutting Tip (Decimal Inch)0.0689
Thickness (mm)4.95
Insert Size3
Thickness (Decimal Inch - 4 Decimals)0.1949
Finish CoatingTiC/TiCN/TiN
Thread TypeInternal, External
UNSPSC Code23291804
Warning Icon

WARNING: This Product Can Expose You To Materials And/Or Chemicals Which Are Known To The State Of California To Cause Cancer And/Or Reproductive Harm.

For more info, visit www.p65warnings.ca.gov.
