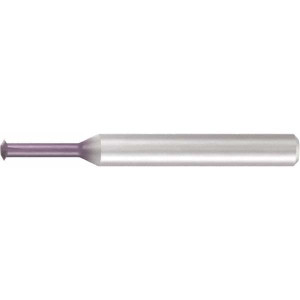

EMUGE-FRANKEN Single Profile Thread Mill: #6, 32 to 36 TPI, Internal, 3 Flutes, Solid Carbide 0.124" Cut Dia, 1/8" Shank Dia, 1.625" OAL, TiCN Coated GFS23706.5006 - 40627598
Brand: EMUGE-FRANKEN- SKU:
- 40627598
- ID:
- 784091
$179.72
EMUGE-FRANKEN Single Profile Thread Mill: #6, 32 to 36 TPI, Internal, 3 Flutes, Solid Carbide 0.124" Cut Dia, 1/8" Shank Dia, 1.625" OAL, TiCN Coated
Manufacturer Part #: GFS23706.5006
S/N: 40627598
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Threads Per Inch | 36 |
| Minimum Pitch (mm) | 0.70 |
| Minimum Threads Per Inch | 32 |
| Maximum Pitch (mm) | 0.70 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Thread Size | #6 |
| Shank Diameter (Inch) | 1/8 |
| Cutting Diameter (Decimal Inch) | 0.1240 |
| Overall Length (Decimal Inch) | 1.6250 |
| Overall Length (Inch) | 1-5/8 |
| Shank Length (Decimal Inch) | 1.0940 |
| Number Of Flutes | 3 |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2760 |
| Coating/Finish | TiCN |
