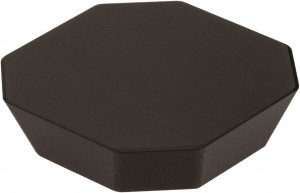

Seco Tools SEAN1303AFTNM15 Carbide Milling Insert TiCN/Al2O3 Finish, 0.132" Thick x 0.529" Wide 02566059 - 40633182
Brand: Seco Tools- SKU:
- 40633182
- ID:
- 662964
$42.52
Seco Tools SEAN1303AFTNM15 Carbide Milling Insert TiCN/Al2O3 Finish, 0.132" Thick x 0.529" Wide
Manufacturer Part #: 02566059
S/N: 40633182
UNSPSC: 23291601
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | SEAN |
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | MK1500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1323 |
| Coating/Finish | TiCN, Al2O3 |
| Relief Angle | 20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Insert Size Code | 1303 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.5291 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Series | SEAN-13 |
| Coating Process | CVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.5291 |
| Rake | Neutral |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | SEAN1303AFTN-M15 |
| Iso Code | SEAN1303AFTN-M15 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SEAN1303AFTN-M15 |
| Cutter Series Compatibility | R220.13-12 |
| Chip Breaker | M15 |
| Material Application | Cast Iron |
| Shape | Square |
| Insert Holding Method | Wedge Clamp |
| Coating Classification | Duratomic |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5291 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5291 |
