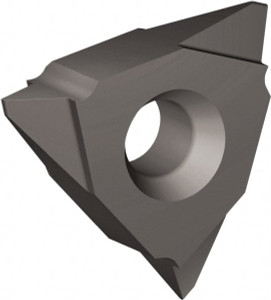

Vargus 3VERA60 VTX Carbide On-Edge Threading Inserts TiAlN Finish, RH Cut, External, Partial Profile 60°, 48-8 Ext TPI, 3/8

Vargus 3VERA60 VTX Carbide On-Edge Threading Inserts TiAlN Finish, RH Cut, External, Partial Profile 60°, 48-8 Ext TPI, 3/8" Inscribed Circle, 0.1417" Thick 62021 - 40682536

Brand:   Vargus
SKU:
40682536
ID:
666127
callling
$32.85
Current Stock:
Adding to cart… The item has been added

Vargus

Vargus 3VERA60 VTX Carbide On-Edge Threading Inserts TiAlN Finish, RH Cut, External, Partial Profile 60°, 48-8 Ext TPI, 3/8" Inscribed Circle, 0.1417" Thick

Manufacturer Part #: 62021

S/N: 40682536

UNSPSC: 23291804

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert Style3VER
Insert Size Code16
Insert MaterialSolid Carbide
Manufacturer GradeVTX
Thread TypeExternal
Thread StandardPartial Profile 60 Degree
External Threads Per Inch48-8
External Pitch (mm)0.5-3
Inscribed Circle (Decimal Inch)0.3750
Inscribed Circle (Inch)3/8
Cutting DirectionRight Hand
RakePositive
Coating ProcessPVD
Corner Radius (Decimal Inch)0.0020
Hole Diameter0.1516
Primary Workpiece MaterialUniversal
Primary Workpiece Material CodeH, K, M, N, P, S
StandardsISO 90012008
Material GradeMicrograin
Rake Angle10
Thickness (Decimal Inch - 4 Decimals)0.1417
Coating/FinishTiAlN
