U.S. Motors 1/3 Max hp, 1,075 Max RPM, Permanent Split Cap Electric AC DC Motor 208-230 V Input, Single Phase, 48Y Frame, 1/2" Shaft Diam, Stud Mount, TEAO Enclosure 5462H - 40698201

U.S. Motors 1/3 Max hp, 1,075 Max RPM, Permanent Split Cap Electric AC DC Motor 208-230 V Input, Single Phase, 48Y Frame, 1/2" Shaft Diam, Stud Mount, TEAO Enclosure 5462H - 40698201

Brand:   U.S. Motors
SKU:
40698201
ID:
573289
callling
$259.80
Current Stock:
Adding to cart… The item has been added

U.S. Motors

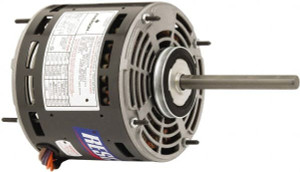

U.S. Motors 1/3 Max hp, 1,075 Max RPM, Permanent Split Cap Electric AC DC Motor 208-230 V Input, Single Phase, 48Y Frame, 1/2" Shaft Diam, Stud Mount, TEAO Enclosure

Manufacturer Part #: 5462H

S/N: 40698201

UNSPSC: 26100000

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Enclosure StyleTEAO
Maximum HorsePower1/3
Nameplate Rpm1075RPM
Voltage208 - 230 V
Frame Size48Y
Mount StyleStud
ApplicationCondenser Fan
Number Of Phases1
Insulation ClassB
Full Load Amperage2.6/1.8
