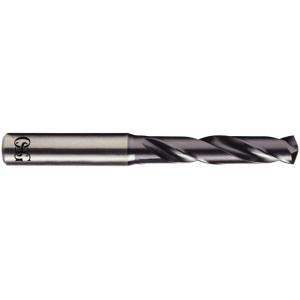

OSG 3mm 140° Solid Carbide Screw Machine Drill Bit WD1 Finish, 20mm Flute Length, 62mm OAL, Through Coolant HP253-1181 - 40739914
Brand: OSG USA, INC.- SKU:
- 40739914
- ID:
- 738964
$53.42
OSG 3mm 140° Solid Carbide Screw Machine Drill Bit WD1 Finish, 20mm Flute Length, 62mm OAL, Through Coolant
Manufacturer Part #: HP253-1181
S/N: 40739914
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Point Type | R-Thinned |
| Primary Workpiece Material | Steel, Alloy Steel, Cast Iron |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 62 |
| Overall Length (Decimal Inch) | 2.4409 |
| Shank Diameter (mm) | 6 |
| Series | HP253 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.002 to +0.012 mm |
| Flute Length (mm) | 20.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 - 3.50 |
| UNSPSC Code | 23241635 |
