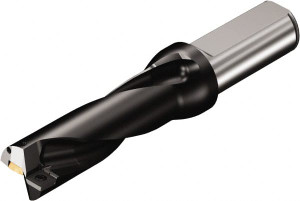

Sandvik Coromant 3.15" Max Drill Depth, 3xD, 1" Diam, Indexable Insert Drill Drill Style A880 LXxx-03, Takes 2 Inserts, 1" Shank Diam, Straight Shank 5723823 - 40741910
Brand: Sandvik Coromant- SKU:
- 40741910
- ID:
- 644883
$1,002.38
Sandvik Coromant 3.15" Max Drill Depth, 3xD, 1" Diam, Indexable Insert Drill Drill Style A880 LXxx-03, Takes 2 Inserts, 1" Shank Diam, Straight Shank
Manufacturer Part #: 5723823
S/N: 40741910
UNSPSC: 23291503
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Compatible Drill Style | A880..LXxx-03 |
| Maximum Drill Diameter (mm) | 25.40 |
| Maximum Drill Diameter (Decimal Inch) | 1.0748 |
| Maximum Drill Depth (Decimal Inch) | 3.1500 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 2 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 3.0000 to 4.0000 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 3xD |
| Series | CoroDrill® 880 |
| Flute Length (Decimal Inch) | 3.7342 |
| Flute Length (mm) | 94.85 |
| Body Length | 80.01 |
| Body Length (Decimal Inch) | 3.1500 |
| Shank Length (Decimal Inch) | 2.2047 |
| Shank Length (mm) | 56.00 |
| Insert Size (Decimal Inch) | 0.1181 |
| Insert Size (mm) | 3.00 |
| UNSPSC Code | 23291503 |
| Coolant Through | Yes |
