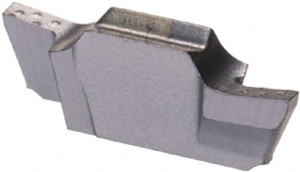

Iscar GEPI 0.80-0.00RX IC908 Carbide Grooving Insert TiAlN Finish, RH, 0.8mm Cutting Width, 1.5mm Max Depth, Series Cut Grip 6403581 - 41025800
Brand: Iscar- SKU:
- 41025800
- ID:
- 648672
$55.76
Iscar GEPI 0.80-0.00RX IC908 Carbide Grooving Insert TiAlN Finish, RH, 0.8mm Cutting Width, 1.5mm Max Depth, Series Cut Grip
Manufacturer Part #: 6403581
S/N: 41025800
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | GEPI |
| Insert Size Code | 080000 |
| Cutting Width (Decimal Inch) | 0.0315 |
| Cutting Width (mm) | 0.80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Full Radius | No |
| Rake | Positive |
| Insert Holding Method | Clamp |
| Insert Size | 080000 |
| Material Grade | Submicron |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | No |
| Series | Cut Grip |
| Coating Process | PVD |
| Rake Angle | 8.00 |
| Overall Length (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 10.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | X |
| Overall Width (mm) | 0.80 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0315 |
| Coating/Finish | TiAlN |
| Single Or Double End | Double |
