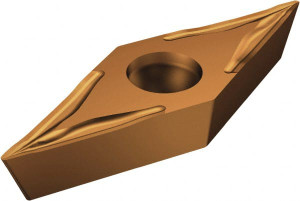

Sandvik Coromant VCGT221-UM 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 10.67mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 35° Diamond 5755935 - 41062738
Brand: Sandvik Coromant- SKU:
- 41062738
- ID:
- 674268
$49.40
Sandvik Coromant VCGT221-UM 1125 Carbide Turning Insert TiAlN/AlCr2O3 Finish, 10.67mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 35° Diamond
Manufacturer Part #: 5755935
S/N: 41062738
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 35 |
| Manufacturer Grade | 1125 |
| Coating/Finish | TiAlN, AlCr2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 3.17 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | CoroTurn 107 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (mm) | 10.67 |
| Insert Length (Decimal Inch) | 0.4201 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Steel, Stainless Steel, Non-Ferrous Metal, Superalloy, Titanium |
| Secondary Workpiece Material Code | M, N, P, S |
| Iso Code | VCGT 11 03 04-UM 1125 |
| Chip Breaker | UM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
