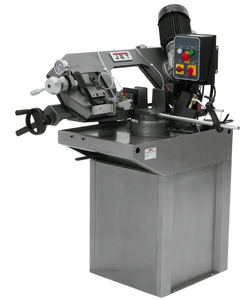

Jet Zip Miter Horizontal Bandsaw - 414464
Brand: Jet- SKU:
- 414464
- ID:
- 102338
| Model | J-9180-3 |
$3,499.00
Jet J-9180-3, 7" Zip Miter Horizontal Bandsaw Stock No. 414464
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.
- Adjustable blade guides that utilizes cam follower bearings mounted on eccentric shafts
- Adjustable Material Stop
- Convenient control panel with overload protection
- Fully adjustable hydraulic downfeed system
- Heavy-duty cast iron saw head and sturdy base
- Large hand wheel and built-in gauge provides easy blade tensioning
- Mitering head swivels to cut any angle 0° - 60° while the work piece remains secured
- Quick positioning vise reduces set-up time
- Round at 45 Degrees (In.) 4-1/2
- Round at 60 Degrees (In.) 2-3/4
- Round at 90 Degrees (In.) 7
- Rectangle at 45 Degrees (In.) 4-1/2 x 4-1/2
- Rectangle at 60 Degrees (In.) 2-3/4 x 2-3/4
- Rectangle at 90 Degrees (In.) 7-7/8 x 6
- Weight (Lbs.) 375
- Head Movement (Deg.) 60°
- Blade Wheel Diameter (In.) 10-1/2
- Motor (HP) 1 HP, 230V, 3Ph
- Overall Dimensions (L x W x H) (In.) 47 x 29 x 56-1/2
- Prewired Voltage (V.) 230
- Drive Geared Head
