Kennametal A4G0300M3SP04GUP KCU10 Carbide Grooving Insert Neutral, 3mm Cutting Width, 2.9mm Max Depth, Series A4 3871071 - 41947342

Kennametal A4G0300M3SP04GUP KCU10 Carbide Grooving Insert Neutral, 3mm Cutting Width, 2.9mm Max Depth, Series A4 3871071 - 41947342

Brand:   Kennametal
SKU:
41947342
ID:
650186
callling
$56.75
Current Stock:
Adding to cart… The item has been added

Kennametal

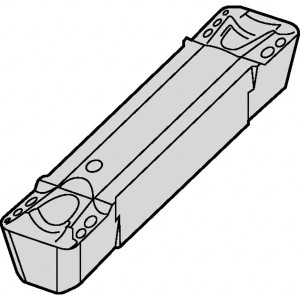

Kennametal A4G0300M3SP04GUP KCU10 Carbide Grooving Insert Neutral, 3mm Cutting Width, 2.9mm Max Depth, Series A4

Manufacturer Part #: 3871071

S/N: 41947342

UNSPSC: 23242105

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Insert StyleA4G
Cutting Width (Decimal Inch)0.1181
Cutting Width (mm)3.00
Insert HandNeutral
Maximum Depth of Cut (Decimal Inch)0.1142
Maximum Depth of Cut (mm)2.90
Insert MaterialCarbide
Manufacturer GradeKCU10
Full RadiusNo
Corner Radius (Decimal Inch)0.0157
Corner Radius (mm)0.40
RakePositive
Insert Size0300
Material GradeC3, C4
Maximum Depth Of Cut Range (Decimal Inch)0.1000 to 0.1500
Maximum Depth Of Cut Range (mm)2.00 to 3.00
Multi-use ToolNo
SeriesA4
Coating ProcessPVD
Overall Length (Decimal Inch)0.7874
UNSPSC Code23242105
Chip BreakerGUP
Insert Seat Size3S
