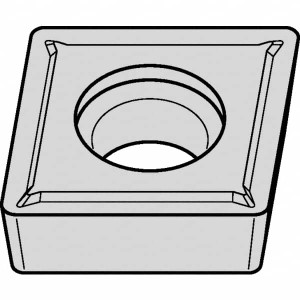

Kennametal CCMT32.51LF KCP25B Carbide Turning Insert TiCN/Al2O3/TiOCN Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Screw-On 5387627 - 42698449
Brand: Kennametal- SKU:
- 42698449
- ID:
- 671742
$34.99
Kennametal CCMT32.51LF KCP25B Carbide Turning Insert TiCN/Al2O3/TiOCN Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Screw-On
Manufacturer Part #: 5387627
S/N: 42698449
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80degree |
| Manufacturer Grade | KCP25B |
| Coating/Finish | TiCN, Al2O3, TiOCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | Screw-On |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (mm) | 2.29 |
| Maximum Depth of Cut (Decimal Inch) | 0.0900 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8in |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3808 |
| Primary Workpiece Material | Steel, Cast Iron |
| Primary Workpiece Material Code | P, K |
| Iso Code | CCMT32.51 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 5387627 |
| Material Grade | C2, C3, C6, C7 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | LF |
| Rake Angle | 5 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CCMT3251LF |
| Width (Decimal Inch - 4 Decimals) | 0.3750in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3251 |
