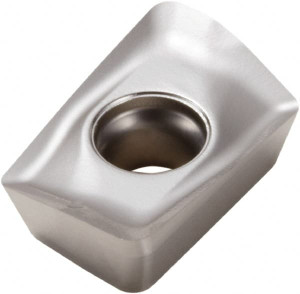

Seco Tools XOMX120408TR-ME08 Carbide Milling Insert TiAlN/NbN Finish, 0.453" Long x 0.16" Thick x 0.322" Wide 02899478 - 42839399
Brand: Seco Tools- SKU:
- 42839399
- ID:
- 662521
$34.32
Seco Tools XOMX120408TR-ME08 Carbide Milling Insert TiAlN/NbN Finish, 0.453" Long x 0.16" Thick x 0.322" Wide
Manufacturer Part #: 02899478
S/N: 42839399
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | XOMX |
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | MS2050 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1996 |
| Coating/Finish | TiAlN, NbN |
| Relief Angle | 15 |
| Maximum Depth of Cut (Decimal Inch) | 0.4567 |
| Insert Size Code | 120408 |
| Material Grade | Micrograin |
| Inscribed Circle (Decimal Inch) | 0.3228 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Series | XOMX-12 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1535 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4567 |
| Rake | Positive |
| Primary Workpiece Material | Superalloys & Titanium |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Steel, Stainless Steel |
| Secondary Workpiece Material Code | P, M |
| Ansi Code | XOMX120408TR-ME08 |
| Iso Code | XOMX120408TR-ME08 |
| Standards | ISO |
| Rake Angle | 20.1 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XOMX120408TR-ME08 |
| Cutter Series Compatibility | R217.69-12, R220.69-12 |
| Chip Breaker | ME08 |
| Material Application | Steel, Stainless Steel, Superalloys & Titanium |
| Shape | Parallelogram |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3228 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4567 |
