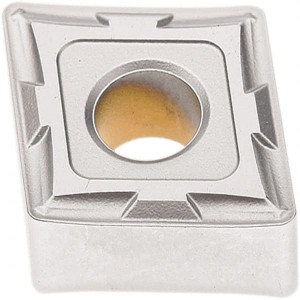

Seco Tools CNMG432-MF2 TP1501 Carbide Turning Insert Al2O3 Finish, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond 02959801 - 43017250
Brand: Seco Tools- SKU:
- 43017250
- ID:
- 676330
$24.95
Seco Tools CNMG432-MF2 TP1501 Carbide Turning Insert Al2O3 Finish, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond
Manufacturer Part #: 02959801
S/N: 43017250
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80degree |
| Manufacturer Grade | TP1501 |
| Coating/Finish | TiCN, Al2O3, Cr |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | CNMG-MF2 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.15 |
| Maximum Depth of Cut (Decimal Inch) | 0.4764 |
| Insert Holding Method | Clamp, Pin, Lever Lock |
| Width (Inch) | 1/2in |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5079 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron, Hard Material |
| Secondary Workpiece Material Code | K, H |
| Iso Code | CNMG120408-MF2 |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 02959801 |
| Material Grade | P10, P20 |
| Single or Multi Tipped | Multi Tipped |
| Proprietary Coating Designation | Duratomic |
| Lead Angle | 80degree |
| Coating Classification | Duratomic |
| Chip Breaker | MF2 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | CNMG432-MF2 |
| Width (Decimal Inch - 4 Decimals) | 0.5000in |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Boring, Facing, Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
