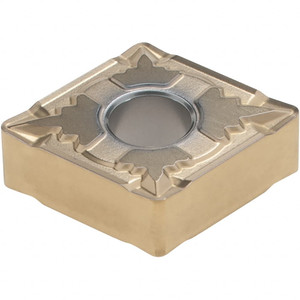

Ingersoll Cutting Tools CNMG432EA TT5080 Carbide Turning Insert 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond 5523127 - 43265321
Brand: Ingersoll Cutting Tools- SKU:
- 43265321
- ID:
- 669865
$18.45
Ingersoll Cutting Tools CNMG432EA TT5080 Carbide Turning Insert 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Diamond
Manufacturer Part #: 5523127
S/N: 43265321
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 80.0 |
| Manufacturer Grade | TT5080 |
| Coating/Finish | AlTiN, TiN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Series | CNMG |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Insert Holding Method | Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Stainless Steel, Super-alloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Ansi Code | CNMG432EATT5080 |
| Iso Code | CNMG120408EA TT5080 |
| Standards | ISO |
| Chip Breaker | EA |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Insert Size Code | 432 |
