Tungaloy LNMU0303 Grade AH725 Carbide Milling Insert 6864165 - 43292077
Brand: Tungaloy- SKU:
- 43292077
- ID:
- 663352
$25.53

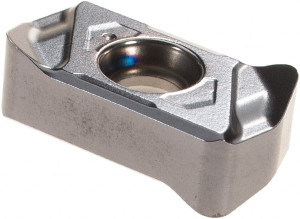

Tungaloy LNMU0303 Grade AH725 Carbide Milling Insert
Manufacturer Part #: 6864165
S/N: 43292077
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | LNMU |
| Insert Size | 03 |
| Insert Material | Solid Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | AH725 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1690 |
| Coating/Finish | TiAlN |
| Relief Angle | 0 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (mm) | 1.00 |
| Insert Size Code | 0303 |
| Material Grade | P15, M15, K25, S15 |
| Inscribed Circle (Decimal Inch) | 0.2360 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 3/64 |
| Inscribed Circle Range (Decimal Inch) | 0.0000 to 0.2500 |
| Insert Hand | Right Hand |
| Series | LNMU |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Ansi Code | LNMU0303ZER-ML AH725 |
| Iso Code | LNMU0303ZER-ML AH725 |
| Standards | ISO |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | LNMU0303ZER-ML |
| Cutter Series Compatibility | EXN03, TXN03, HXN03-M, EXN03-C, HXN03-M-C, EXN03-N |
| Chip Breaker | ML |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2360 |
| Width (mm - 2 Decimals) | 6.00 |
| Multi-Use Tool | Yes |
