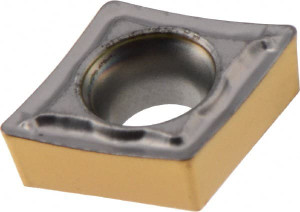

Iscar CCMT2-1SM IC807 Carbide Turning Insert TiAlN/TiN Finish, 6.3mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn 5550211 - 43314442
Brand: Iscar- SKU:
- 43314442
- ID:
- 670146
$16.30
Iscar CCMT2-1SM IC807 Carbide Turning Insert TiAlN/TiN Finish, 6.3mm Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5550211
S/N: 43314442
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| ANSI Insert Code | CCMT2-1 |
| ISO Insert Code | CCMT060204 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80 |
| Manufacturer Grade | IC807 |
| Coating/Finish | TiAlN, TiN |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Finishing, Medium Machining |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness, Special, Supe |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (mm) | 6.30 |
| Insert Length (Decimal Inch) | 0.2480 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P, M, K, S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Material Grade | Submicron |
| Chip Breaker | SM |
| ANSI Size Code | 2-1 |
| ISO Size Code | 060204 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2-1 |
