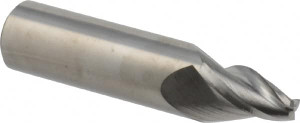

Seco Tools 15° per Side 6.5mm Small End Diam 25mm LOC 3-Flute Solid Carbide Tapered Square End Mill Uncoated, 20mm Shank Diam, 90mm OAL, 30° Helix, Spiral Flute 00029138 - 43361104
Brand: Seco Tools- SKU:
- 43361104
- ID:
- 638992
$519.11
Seco Tools 15° per Side 6.5mm Small End Diam 25mm LOC 3-Flute Solid Carbide Tapered Square End Mill Uncoated, 20mm Shank Diam, 90mm OAL, 30° Helix, Spiral Flute
Manufacturer Part #: 00029138
S/N: 43361104
UNSPSC: 23000000
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (mm) | 6.50 |
| Length of Cut (mm) | 25.00 |
| Taper Angle Per Side | 15.00 |
| End Mill Material | Solid Carbide |
| End Shape | Square |
| Flute Type | Spiral |
| Overall Length (mm) | 90.00 |
| Centercutting | No |
| Shank Diameter (mm) | 20.00 |
| Small End Diameter (Decimal Inch) | 0.2559 |
| Small End Diameter (mm) | 6.50 |
| Helix Angle | 30 |
| Shank Diameter Tolerance | h5 |
| Small End Diameter Tolerance | +0.1/0 mm |
| Primary Workpiece Material Code | K, M, N, P, S |
| Secondary Workpiece Material Code | N |
| Flute Direction | Right Hand |
| Series | HK |
| TIR Maximum (Decimal Inch) | 0.000800 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9843 |
| Coolant Through | No |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 3 |
| UNSPSC Code | 27112803 |
