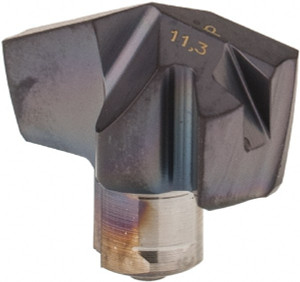

Iscar ICP0445 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 0.445" Diam, 0.26mm High, Through Coolant, Series ICP 5508289 - 43426014
Brand: Iscar- SKU:
- 43426014
- ID:
- 656840
$128.84
Iscar ICP0445 IC908 Carbide Replaceable Tip Drill TiAlN Finish, 140° Included Angle, 0.445" Diam, 0.26mm High, Through Coolant, Series ICP
Manufacturer Part #: 5508289
S/N: 43426014
UNSPSC: 23242105
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Cutting Diameter (Decimal Inch) | 0.4450 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
| Series | ICP |
| Coating Process | PVD |
| Insert Geometry | P |
| Insert Seat Size | 11 |
| Functional Length (Decimal Inch) | 0.1920 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel, Cast Iron, Super-alloys & Titanium, Hard Material |
| Secondary Workpiece Material Code | M, K, S, H |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.2600 |
| Overall Length/Projection (Decimal Inch) | 0.2600 |
| Web Thinning | Web Thinned |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Insert Holding Method | Twist |
| ISO Number | ICP 113 |
| Coolant Through | No |
| Point Type | Thinned |
| Spiral Type | Slow Spiral |
| Style | Honed Cutting Edge |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
