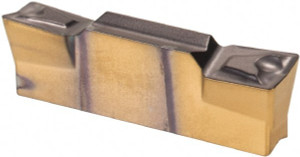

Iscar HFPR4004 IC808 Carbide Grooving Insert TiN/TiAlN Finish, RH, 4mm Cutting Width, 2mm Max Depth, Series Heliface 6200306 - 43696020
Brand: Iscar- SKU:
- 43696020
- ID:
- 648689
$45.54
Iscar HFPR4004 IC808 Carbide Grooving Insert TiN/TiAlN Finish, RH, 4mm Cutting Width, 2mm Max Depth, Series Heliface
Manufacturer Part #: 6200306
S/N: 43696020
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | HFPR |
| Insert Size Code | 4004 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (mm) | 4.00 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Material | Carbide |
| Manufacturer Grade | IC808 |
| Full Radius | Yes |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Rake | Positive |
| Insert Holding Method | Self Grip |
| Insert Size | 4004 |
| Material Grade | Submicron |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Multi-use Tool | Yes |
| Series | Heliface |
| Coating Process | PVD |
| Rake Angle | 7 |
| Overall Length (Decimal Inch) | 0.748 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | HFPR 4004 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | HFPR 4004 |
| UNSPSC Code | 23242105 |
| Coating/Finish | AlTiN, TiAlN, TiN |
