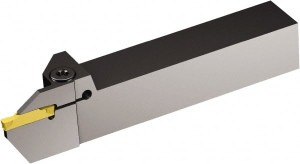

Sandvik Coromant 8.13mm Max Depth, 1.5mm to 1.5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 5" OAL, 1" x 1" Shank, Uses N123D2-0150-CM Inserts, RF123..B Toolholder, Series CoroCut 1-2 5740984 - 43862036
Brand: Sandvik Coromant- SKU:
- 43862036
- ID:
- 686123
$351.43
Sandvik Coromant 8.13mm Max Depth, 1.5mm to 1.5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 5" OAL, 1" x 1" Shank, Uses N123D2-0150-CM Inserts, RF123..B Toolholder, Series CoroCut 1-2
Manufacturer Part #: 5740984
S/N: 43862036
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3200 |
| Maximum Depth of Cut (mm) | 8.13 |
| Maximum Groove Width (mm) | 1.50 |
| Minimum Groove Width (Decimal Inch) | 0.0591 |
| Minimum Groove Width (mm) | 1.50 |
| Toolholder Style | RF123..B |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | N123D2 |
| Insert Compatibility | N123D2-0150-CM |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 101.60 |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Series | CoroCut 1-2 |
| Overall Length (mm) | 127.00 |
| Cutting Tool Application | Cut-Off, Grooving, Parting |
| Maximum Overhang (Inch) | 1.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (Decimal Inch) | 1.0000 |
| Head Length (mm) | 25.40 |
| Manufacturers Catalog Number | RF123D032-16B |
| Coolant Through | No |
| UNSPSC Code | 27112809 |
