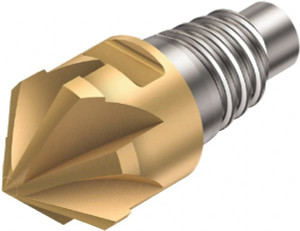

Sandvik Coromant A31616CM80006260G 1030 Carbide Chamfer Mill Tip Insert TiAlN Finish, 8 Flutes, 7mm Diam, 7.7mm Depth, Series CoroMill 316 5722432 - 43914183
Brand: Sandvik Coromant- SKU:
- 43914183
- ID:
- 663951
$333.18
Sandvik Coromant A31616CM80006260G 1030 Carbide Chamfer Mill Tip Insert TiAlN Finish, 8 Flutes, 7mm Diam, 7.7mm Depth, Series CoroMill 316
Manufacturer Part #: 5722432
S/N: 43914183
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Milling Tip Type | Chamfer |
| Milling Tip Style | A316..CM |
| Maximum Depth of Cut (Decimal Inch) | 0.3031 |
| Tool Material | Carbide |
| Manufacturer Grade | 1030 |
| Insert Hand | Right Hand |
| Chipbreaker | Straight |
| Series | 316 |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0000 |
| Cutting Width (Decimal Inch) | 0.6250 |
| Functional Length (Decimal Inch) | 0.7362 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| Standards | ANSI |
| Milling Tip Full Description | A316-16CM800-06260G 1030 |
| Lead Angle | 60 |
| Manufacturers Catalog Number | 5722432 |
| Chamfer Angle | 60.000 |
| Overall Length (Decimal Inch) | 0.7362 |
| Insert Size | 16CM800 |
| Helix Angle | 0 |
| Coolant Through | No |
| Material Grade | P30, P40, P50, M30, M40, N10, N20, S10, S20 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3031 |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 8 |
