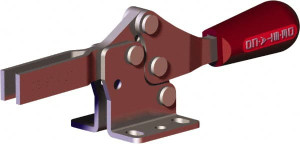

Destaco 202 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 61° Handle Movement, 91° Bar Opening, U-Bar, Flanged Base, Carbon Steel 217-U-L - 44003218
Brand: Destaco- SKU:
- 44003218
- ID:
- 441400
$42.59
Destaco 202 Lb Holding Capacity, Horizontal Handle, Manual Hold Down Toggle Clamp 61° Handle Movement, 91° Bar Opening, U-Bar, Flanged Base, Carbon Steel
Manufacturer Part #: 217-U-L
S/N: 44003218
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Open |
| Holding Capacity (N) | 900.00 |
| Holding Capacity (Lb.) | 202.33 |
| Length Distance Between Mount Holes (mm) | 13.21, 26.16 |
| Length Distance Between Mount Holes | 0.52in, 1.03in, 13.21mm, 26.16mm |
| Length Distance Between Mount Holes (Inch) | 0.5200, 1.0300 |
| Width Distance Between Mount Holes (mm) | 28.45 |
| Width Distance Between Mount Holes | 1.12in, 28.45mm |
| Width Distance Between Mount Holes (Decimal Inch) | 1.1200 |
| Height Under Bar (Decimal Inch) | 0.9200 |
| Height Under Bar (mm) | 23.37 |
| Overall Length (mm) | 167.20 |
| Overall Length (Decimal Inch) | 6.5827 |
| Base Length (mm) | 37.08 |
| Base Width (Inch) | 1.5500 |
| Base Width | 39.37 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Material | Carbon Steel |
| Handle Color | Red |
| Spindle Included | Yes |
| Mounting Hole Diameter (mm) | 4.83 |
| Mounting Hole Diameter (Decimal Inch) | 0.1900 |
| Bar Opening (Degrees) | 91 |
| Handle Movement (Degrees) | 61 |
| Bar Width (mm) | 12.45 |
| Bar Width (Decimal Inch) | 0.4900 |
| UNSPSC Code | 31162902 |
| Front Of Base To Toggle Tip | 2.09in |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.0900 |
| Front of Base To Tip Of Toggle Bar (mm) | 53.09 |
| Number Of Mounting Holes | 6 |
