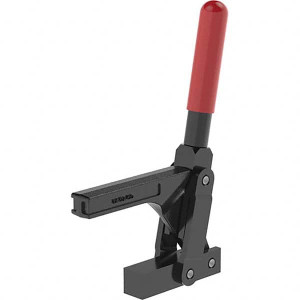

Destaco 697 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 159° Handle Movement, 89° Bar Opening, Solid Bar, Solid Base, Oxide Finish, Forged Alloy Steel 5105-B - 44004075
Brand: Destaco- SKU:
- 44004075
- ID:
- 441411
$79.73
Destaco 697 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp 159° Handle Movement, 89° Bar Opening, Solid Bar, Solid Base, Oxide Finish, Forged Alloy Steel
Manufacturer Part #: 5105-B
S/N: 44004075
UNSPSC: 31162902
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Solid |
| Bar End Type | Closed |
| Holding Capacity (N) | 3100.00 |
| Holding Capacity (Lb.) | 696.91 |
| Height Under Bar (Decimal Inch) | 2.1400 |
| Height Under Bar (mm) | 54.36 |
| Overall Length (mm) | 104.90 |
| Overall Length (Decimal Inch) | 4.1300 |
| Overall Height (Decimal Inch) | 6.5400 |
| Overall Height (Mm - 5 Decimals) | 166.12 |
| Handle Style | Straight |
| Material | Forged Alloy Steel |
| Handle Material | Forged Alloy Steel |
| Handle Color | Red |
| Bar Opening (Degrees) | 89 |
| Handle Movement (Degrees) | 159 |
| Bar Width (mm) | 12.95 |
| Bar Width (Decimal Inch) | 0.5100 |
| Bar Thickness (mm) | 14.22 |
| UNSPSC Code | 31162902 |
| Bar Thickness (Decimal Inch) | 0.5600 |
| Finish Coating | Oxide |
