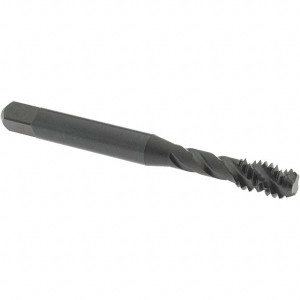

OSG Spiral Flute Tap: 1/4-20 UNC, 3 Flutes, Bottoming, 3B Class of Fit, High Speed Steel, Oxide Coated 1" Thread Length, 2-1/2" OAL, Right Hand Thread, H3, Series 13020 1302001801 - 44159218
Brand: OSG USA, INC.- SKU:
- 44159218
- ID:
- 771399
$29.10
OSG Spiral Flute Tap: 1/4-20 UNC, 3 Flutes, Bottoming, 3B Class of Fit, High Speed Steel, Oxide Coated 1" Thread Length, 2-1/2" OAL, Right Hand Thread, H3, Series 13020
Manufacturer Part #: 1302001801
S/N: 44159218
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/4-20 |
| Thread Standard | UNC |
| Chamfer | Bottoming |
| Material | High-Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Coating/Finish | Steam Oxide |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Material Application | Aluminum, Cast Aluminum, Cast Iron, High-Carbon Steel, Low-Carbon Steel, Medium-Carbon Steel |
| Number Of Flutes | 3 |
| Flute Direction | Right Hand |
| Helix Angle | 45 |
| Threads per Inch | 20 |
| Overall Length (Inch) | 2-1/2 |
| Thread Length (Decimal Inch) | 0.397 |
| Overall Length (Decimal Inch) | 2.5 |
| Shank Diameter (Decimal Inch) | 0.255 |
| Neck Length (Decimal Inch) | 0.996 |
| Square Length (Decimal Inch) | 0.3125 |
| Square Size (Decimal Inch) | 0.191 |
| Flute Style | Spiral |
| Series | 13020 |
