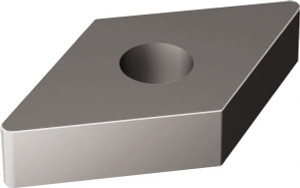

Sandvik Coromant DNGA432T0320 650 Ceramic Turning Insert TiN Finish, 14.7mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond 5731966 - 44393585
Brand: Sandvik Coromant- SKU:
- 44393585
- ID:
- 674541
$25.21
Sandvik Coromant DNGA432T0320 650 Ceramic Turning Insert TiN Finish, 14.7mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 55° Diamond
Manufacturer Part #: 5731966
S/N: 44393585
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | DNGA |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 55 |
| Manufacturer Grade | 650 |
| Coating/Finish | Titanium Nitride |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 4.76 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | T-Max P |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Insert Material | Ceramic |
| Insert Shape | Diamond |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (mm) | 14.70 |
| Insert Length (Decimal Inch) | 0.5789 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Secondary Workpiece Material | Superalloy, Titanium, Hard Material |
| Secondary Workpiece Material Code | H, S |
| Iso Code | DNGA150408T01020 650 |
| Chip Breaker | A |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
