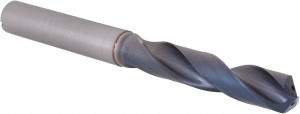

Sumitomo 13.5mm 135° Solid Carbide Screw Machine Drill Bit TiAlCr/TiSi Finish, 67.5mm Flute Length, 134mm OAL, Through Coolant 5VHY111 - 44505550
Brand: Sumitomo- SKU:
- 44505550
- ID:
- 740808
$363.32
Sumitomo 13.5mm 135° Solid Carbide Screw Machine Drill Bit TiAlCr/TiSi Finish, 67.5mm Flute Length, 134mm OAL, Through Coolant
Manufacturer Part #: 5VHY111
S/N: 44505550
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 13.50 |
| Drill Bit Size (Decimal Inch) | 0.5315 |
| Tool Material | Solid Carbide |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Drill Point Angle | 135 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Primary Workpiece Material | Cast Iron, Stainless Steel, Steel |
| Overall Length (mm) | 134.00 |
| Overall Length (Decimal Inch) | 5.2756 |
| Shank Diameter (mm) | 14.00 |
| Series | MDW-HGS |
| Web Configuration | Tapered |
| Number of Margins | 2 |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 1.9724 |
| Maximum Drilling Depth (mm) | 50.10 |
| Shank Length (Decimal Inch) | 2.5197 |
| Shank Length (mm) | 64.00 |
| Drill Point Length (mm) | 2.80 |
| Drill Point Length (Decimal Inch) | 0.1102 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | h8 |
| Flute Length (Decimal Inch) | 2.6575 |
| Flute Length (mm) | 67.50 |
| Drill Bit Size Range (Decimal Inch) | 0.5000 to 0.6000 |
| Drill Bit Size Range (mm) | 13.50 to 17.00 |
