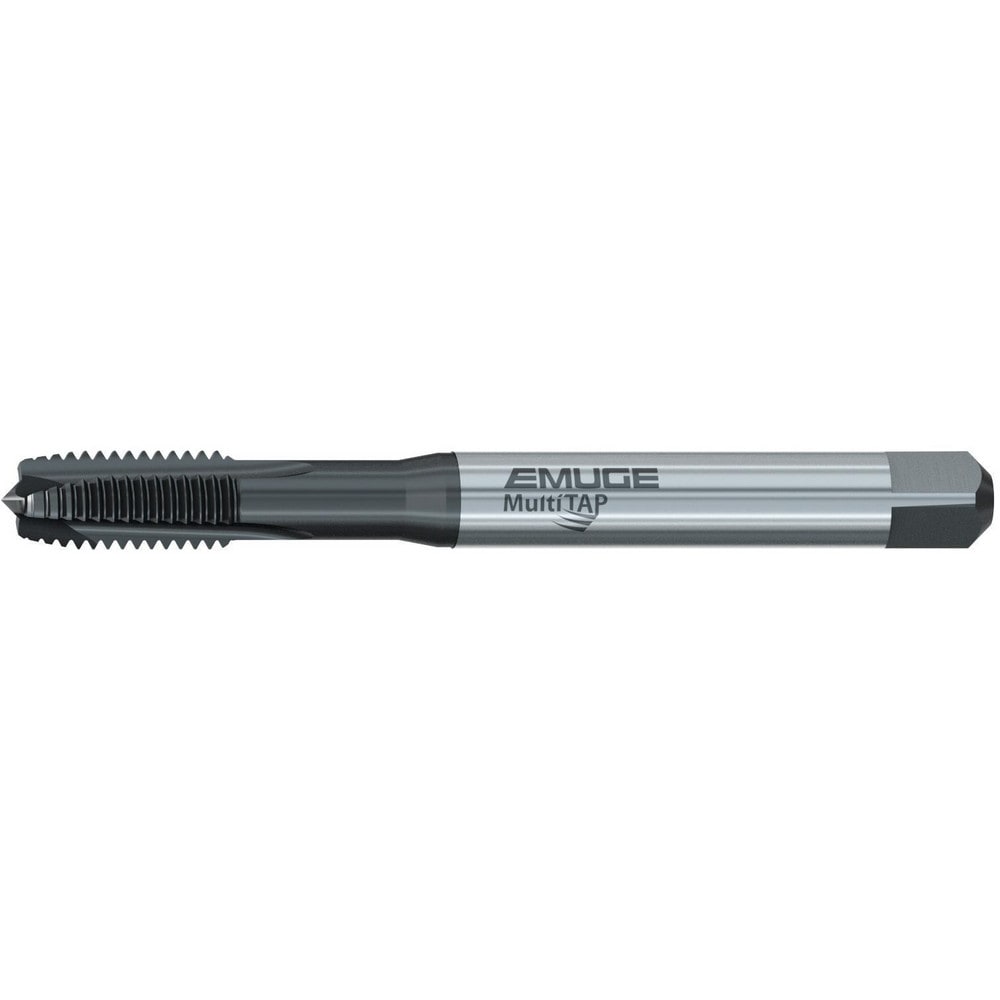

EMUGE-FRANKEN Spiral Point Tap: 1/4-28 UNF, 3 Flutes, Plug Chamfer, 2B Class of Fit, High-Speed Steel-E, NT2 Coated 17.00 mm Thread Length, 80.00 mm OAL, Right Hand, Series BU497300 BU497300.5043 - 44789915
Brand: EMUGE-FRANKEN- SKU:
- 44789915
- ID:
- 773328
$24.87
EMUGE-FRANKEN Spiral Point Tap: 1/4-28 UNF, 3 Flutes, Plug Chamfer, 2B Class of Fit, High-Speed Steel-E, NT2 Coated 17.00 mm Thread Length, 80.00 mm OAL, Right Hand, Series BU497300
Manufacturer Part #: BU497300.5043
S/N: 44789915
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/4-28 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | HSS-E Cobalt |
| Class Of Fit | 2B |
| Coating/Finish | NT2 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal |
| Oversize | No |
| Interrupted Thread | No |
| Threads per Inch | 28 |
| Overall Length (Decimal Inch) | 3.1500 |
| Thread Pitch (Decimal Inch) | 0.0357 |
| Overall Length (mm) | 80 |
| Thread Length (Decimal Inch) | 0.6690 |
| Thread Length (mm) | 17.00 |
| Shank Diameter (mm) | 6.48 |
| Application | Through-Hole Threading |
| Neck Length (mm) | 13.00 |
| Square Size (mm) | 4.85 |
| Series | BU497300 |
| Style | Spiral Point |
| UNSPSC Code | 23241600 |
