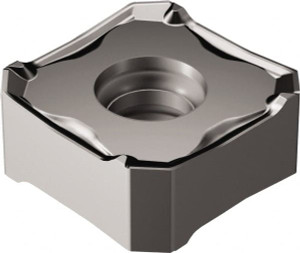

Sandvik Coromant 345R-1305M-KH 3040 Carbide Milling Insert TiCN/Al2O3 Finish, 8.8mm Long x 5.6mm Thick 5759270 - 44879138
Brand: Sandvik Coromant- SKU:
- 44879138
- ID:
- 662127
$38.00
Sandvik Coromant 345R-1305M-KH 3040 Carbide Milling Insert TiCN/Al2O3 Finish, 8.8mm Long x 5.6mm Thick
Manufacturer Part #: 5759270
S/N: 44879138
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | 345 |
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | 3040 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1988 |
| Thickness (mm) | 5.60 |
| Coating/Finish | TiCN, Al2O3 |
| Relief Angle | 0.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Insert Size Code | 1305 |
| Material Grade | P20, K30, H25 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Inscribed Circle (mm) | 13.00 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Series | 345 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.19 |
| Hole Diameter (Decimal Inch) | 0.1890 |
| Rake | Negative |
| Primary Workpiece Material | Steel, Cast Iron, Hard Material |
| Primary Workpiece Material Code | P, K, H |
| Ansi Code | 345R-1305M-KH 3040 |
| Iso Code | 345R-1305M-KH 3040 |
| Standards | ANSI, ISO |
| Rake Angle | 24 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | 345R-1305M-KH 3040 |
| Cutter Series Compatibility | 345 |
| Chip Breaker | KH |
| Material Application | Steel, Cast Iron, Hard Material |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 8.80 |
| Width (Decimal Inch - 4 Decimals) | 0.5118 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5118 |
