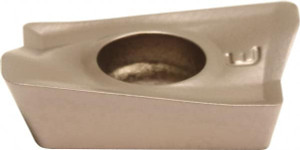

Sumitomo AXMT170516PEERG ACP200 Carbide Milling Insert TiAlN/AlCrN Finish, 0.689" Long x 0.219" Thick x 0.402" Wide 14HA316 - 44887370
Brand: Sumitomo- SKU:
- 44887370
- ID:
- 663136
$19.07
Sumitomo AXMT170516PEERG ACP200 Carbide Milling Insert TiAlN/AlCrN Finish, 0.689" Long x 0.219" Thick x 0.402" Wide
Manufacturer Part #: 14HA316
S/N: 44887370
UNSPSC: 23291601
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | AXMT |
| Insert Size | 170516 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | ACP200 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
| Coating/Finish | Coated |
| Relief Angle | 11 |
| Maximum Depth of Cut (Decimal Inch) | 0.5510 |
| Maximum Depth of Cut (mm) | 14.00 |
| Insert Size Code | 1235 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Length Range (Decimal Inch) | 0.6500 to 0.7000 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.6890 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Cutter Series Compatibility | WEX3000 |
| Chip Breaker | G |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4020 |
| Length (Decimal Inch - 4 Decimals) | 0.6890 |
