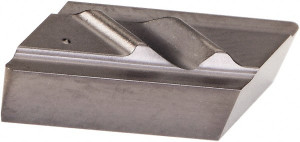

Kennametal NPR51 KCU10 Carbide Profiling Insert AlTiN Finish, RH, 6.35mm Wide x 1/8" Thick, 1/64" Corner Radius, Series Top Notch 4045419 - 44899862
Brand: Kennametal- SKU:
- 44899862
- ID:
- 669174
$31.74
Kennametal NPR51 KCU10 Carbide Profiling Insert AlTiN Finish, RH, 6.35mm Wide x 1/8" Thick, 1/64" Corner Radius, Series Top Notch
Manufacturer Part #: 4045419
S/N: 44899862
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NPR |
| Insert Size Code | 51 |
| Insert Material | Carbide |
| Material Grade | P10, P20, M10, M20, K05, K20, N10, N20, S10, S20, H10 |
| Width (Inch) | 1/4 |
| Manufacturer Grade | KCU10 |
| Thickness (Inch) | 1/8 |
| Insert Height (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Maximum Depth of Cut (Decimal Inch) | 0.1256 |
| Insert Holding Method | Screw |
| Insert Hand | Right Hand |
| Corner Radius (Decimal Inch) | 0.0156 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 55 |
| Relief Angle | 0 |
| Chipbreaker | Common |
| Inscribed Circle (Decimal Inch) | 0.2490 |
| Series | Top Not |
| Coating Process | PVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3769 |
| Insert Length (mm) | 9.53 |
| Insert Length (Inch) | 3/8 |
| Number Of Cutting Edges | 4 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Iso Code | KCGX110304R15 |
| Standards | NPR51, KCGX110304R15 |
| Side Length (Decimal Inch) | 0.3769 |
| Side Length (mm) | 11.60 |
| Shape | Parallelogram |
| Applications | Profiling, Turning |
| MSC/Manufacturer Number | NPR51 |
| Coating Classification | PVD |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Width (Decimal Inch - 4 Decimals) | 0.2490 |
| UNSPSC Code | 23242105 |
