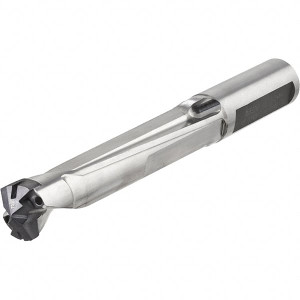

Iscar 19 to 19.89mm, 3xD, 56.9mm Max Depth, 19mm Shank Diam, 132.59mm OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Inserts, Seat Size 19, DCNS Toolholder, Series UniSumoCham 3203022 - 44975969
Brand: Iscar- SKU:
- 44975969
- ID:
- 645348
$539.19
Iscar 19 to 19.89mm, 3xD, 56.9mm Max Depth, 19mm Shank Diam, 132.59mm OAL, Replaceable-Tip Drill Uses FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Inserts, Seat Size 19, DCNS Toolholder, Series UniSumoCham
Manufacturer Part #: 3203022
S/N: 44975969
UNSPSC: 23291502
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Minimum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (mm) | 19.89 |
| Maximum Drill Diameter (Decimal Inch) | 0.7830 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 56.90 |
| Maximum Drill Depth (Decimal Inch) | 2.2400 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7480 |
| Insert Seat Size | 19 |
| Shank Diameter (mm) | 19.00mm |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | FCP, ICK, ICK-2M, ICM, ICP, iCP-2M |
| Overall Length (mm) | 132.59mm |
| Overall Length (Decimal Inch) | 5.2200in |
| Series | UniSumoCham |
| Toolholder Style | DCNS |
| Body Length (Decimal Inch) | 3.0900in |
| Body Length | 78.49 |
| Shank Length (Decimal Inch) | 2.1300in |
| Shank Length (mm) | 54.10mm |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
