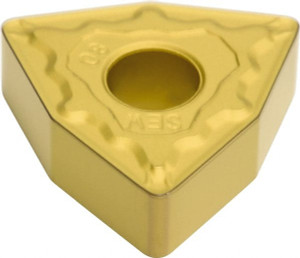

Sumitomo WNMG432ESEW AC820P Carbide Turning Insert Al2O3 Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon 19RJCDD - 45227006
Brand: Sumitomo- SKU:
- 45227006
- ID:
- 677543
$15.98
Sumitomo WNMG432ESEW AC820P Carbide Turning Insert Al2O3 Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 80° Trigon
Manufacturer Part #: 19RJCDD
S/N: 45227006
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | WNMG |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Included Angle | 80.0 |
| Manufacturer Grade | AC820P |
| Coating/Finish | Al2O3 |
| Wiper Edge | Yes |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | TN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3425 |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | WNMG432ESEW |
| Iso Code | WNMG080408N-SEW |
| Standards | ANSI, ISO 13399 |
| Chip Breaker | ESEW |
| Rake Angle | 13 |
| Insert Size Code | 432 |
