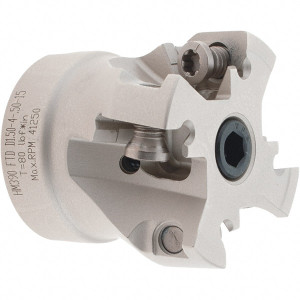

Iscar 1-1/2" Cut Diam, 1/2" Arbor Hole Diam, 0.512" Max Depth, Indexable Square-Shoulder Face Mill Takes 4 Inserts, 0° Lead Angle, 1.37" High, HM390 TDKT 1505 Insert Style, Through Coolant, Series HeliIQMill 3106803 - 45252806
Brand: Iscar- SKU:
- 45252806
- ID:
- 680652
$835.57
Iscar 1-1/2" Cut Diam, 1/2" Arbor Hole Diam, 0.512" Max Depth, Indexable Square-Shoulder Face Mill Takes 4 Inserts, 0° Lead Angle, 1.37" High, HM390 TDKT 1505 Insert Style, Through Coolant, Series HeliIQMill
Manufacturer Part #: 3106803
S/N: 45252806
UNSPSC: 27112803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Compatible Insert Size Code | HM390 TDKT 1505 |
| Cutter Style | HM390 FTD-15 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp, Screw |
| Lead Angle | 0 |
| Series | HeliIQMill |
| Maximum Ramping Angle | 2.00 |
| Overall Height (Decimal Inch) | 1.3700 |
| Hub Diameter (Decimal Inch) | 1.2000 |
| Standards | ISO |
| Complete Insert Compatibility | HM390 TDKT 150516-PDR, HM390 TDKT 150524PDR, HM390 TDKT 150532PDR, HM390 TDKT 1505PDR |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
