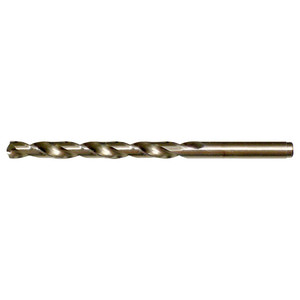

Cle-Line 5/16" 135° Cobalt Jobber Drill Gold Finish Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2" OAL, Split Point C23361 - 45260106
Brand: Cle-Line- SKU:
- 45260106
- ID:
- 717455
$10.59
Cle-Line 5/16" 135° Cobalt Jobber Drill Gold Finish Finish, Right Hand Cut, Spiral Flute, Straight Shank, 4-1/2" OAL, Split Point
Manufacturer Part #: C23361
S/N: 45260106
UNSPSC: 23241634
(Minimum Order Quantity=6)
(Please order in multiples of 6)
Specifications:
| Drill Bit Size (Inch) | 5/16 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Primary Workpiece Material | Aluminum, Superalloy, Titanium |
| Coolant Through | No |
| Number of Flutes | 2 |
| Drill Bit Finish/Coating | Gold |
| Flute Length (Inch) | 3-3/16 |
| Primary Workpiece Material Code | H, K, N, P, S |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Spiral Type | Regular |
| Flute Length (mm) | 80.96 |
| Flute Length (Decimal Inch) | 3.1875 |
| Series | 1802 |
| Shank Diameter (Inch) | 5/16 |
| Shank Diameter (mm) | 7.94 |
| Shank Length (mm) | 33.34 |
| Shank Length (Decimal Inch) | 1.3126 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0010 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight-Cylindrical |
| Tool Performance | High Performance |
| Standards | ASME B94.11M |
| Drill Bit Grade | Heavy Duty |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| UNSPSC Code | 23241634 |
