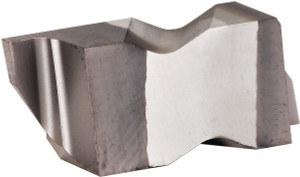

Kennametal NG3047L KCU10 Carbide Grooving Insert AlTiN Finish, LH, 1.19mm Cutting Width, 1.91mm Max Depth, Series Top Notch 4176034 - 45342763
Brand: Kennametal- SKU:
- 45342763
- ID:
- 650229
$42.99
Kennametal NG3047L KCU10 Carbide Grooving Insert AlTiN Finish, LH, 1.19mm Cutting Width, 1.91mm Max Depth, Series Top Notch
Manufacturer Part #: 4176034
S/N: 45342763
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | NG |
| Cutting Width (Decimal Inch) | 0.0469 |
| Cutting Width (mm) | 1.19 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0752 |
| Maximum Depth of Cut (mm) | 1.91 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KCU10 |
| Full Radius | No |
| Corner Radius (Decimal Inch) | 0.0075 |
| Corner Radius (mm) | 0.19 |
| Insert Holding Method | Clamp |
| Insert Size | 3047 |
| Material Grade | C3, C4 |
| Cutting Height (mm) | 8.74 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.0750 to 0.1000 |
| Cutting Height (Decimal Inch) | 0.3440 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Multi-use Tool | No |
| Series | Top Notch |
| Coating Process | PVD |
| Insert Seat Size | 3 |
| MSC/Manufacturer Number | NG3047R/L |
| Overall Width (mm) | 4.98 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1960 |
| Included Angle Degree | 55 |
| Coating/Finish | AlTiN |
| Single Or Double End | Double |
