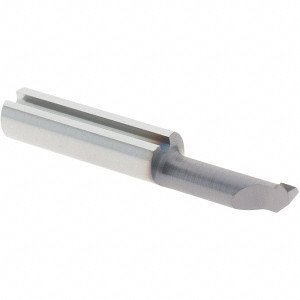

Iscar Single Point Theading Tool: 0.126" Min Thread Dia, 36 to 48 TPI, 0.3937" Cut Depth, Internal, Solid Carbide 0.945" OAL, 60 ° Profile, 0.02" Projection from Edge, TiAlN & TiN Finish 6403940 - 45372703
Brand: Iscar- SKU:
- 45372703
- ID:
- 787265
$74.17
Iscar Single Point Theading Tool: 0.126" Min Thread Dia, 36 to 48 TPI, 0.3937" Cut Depth, Internal, Solid Carbide 0.945" OAL, 60 ° Profile, 0.02" Projection from Edge, TiAlN & TiN Finish
Manufacturer Part #: 6403940
S/N: 45372703
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Type | Internal |
| Material | Solid Carbide |
| Profile Angle | 60 |
| Threading Diameter (Decimal Inch) | 0.1260 |
| Threading Diameter (mm) | 3.20 |
| Cutting Depth (mm) | 10.00 |
| Cutting Depth (Decimal Inch) | 0.3937 |
| Maximum Threads Per Inch | 48 |
| Minimum Pitch (mm) | 0.50 |
| Maximum Pitch (mm) | 0.75 |
| Minimum Threads Per Inch | 36 |
| Shank Diameter (mm) | 4.00 |
| Thread Direction | Right Hand |
| Projection from Edge (Decimal Inch) | 0.0200 |
| Overall Length (mm) | 24.00 |
| Overall Length (Decimal Inch) | 0.9450 |
| Projection From Center (Decimal Inch) | 0.0394 |
| Flat Width (Decimal Inch) | 0.0020 |
| Projection from Center (mm) | 1.00 |
| Coating/Finish | TiAlN, TiN |
| Coolant Through | No |
