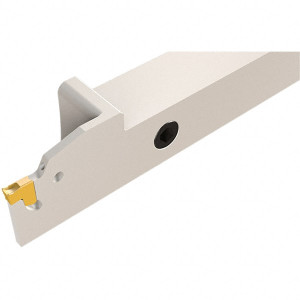

Iscar 22.22mm Max Depth, 2.8mm to 3.5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 120mm OAL, 3/4" x 3/4" Shank, Uses TAG Inserts, TGT Toolholder, Through Coolant, Series Tang-Grip 2302408 - 45375797
Brand: Iscar- SKU:
- 45375797
- ID:
- 686010
$432.60
Iscar 22.22mm Max Depth, 2.8mm to 3.5mm Width, External Right Hand Indexable Grooving/Cutoff Toolholder 120mm OAL, 3/4" x 3/4" Shank, Uses TAG Inserts, TGT Toolholder, Through Coolant, Series Tang-Grip
Manufacturer Part #: 2302408
S/N: 45375797
UNSPSC: 23153308
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8748 |
| Maximum Depth of Cut (mm) | 22.22 |
| Maximum Groove Width (Decimal Inch) | 0.1378 |
| Maximum Groove Width (mm) | 3.50 |
| Minimum Groove Width (Decimal Inch) | 0.1102 |
| Minimum Groove Width (mm) | 2.80 |
| Toolholder Style | TGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TAG N-A, TAG N-C/W/M, TAG N-HF, TAG N-J/JS/JT, TAG N-LF, TAG N-MF, TAG N-UT, TAG R/L-C, TAG R/L-J/JS |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.3400 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | Tang-Grip |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Cutting Tool Application | Cut-Off, Grooving |
| Head Height (Decimal Inch) | 1.0300 |
| Head Length (Decimal Inch) | 1.3800 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | TAG N-A, TAG N-C/W/M, TAG N-J/JS/JT, TAG N-LF, TAG N-UT, TAG R/L-C, TAG R/L-J/JS |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
