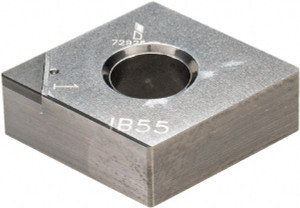

Iscar CNMA431T IB55 CBN Turning Insert Uncoated, 12.9mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn 5700473 - 45388592
Brand: Iscar- SKU:
- 45388592
- ID:
- 670949
$96.73
Iscar CNMA431T IB55 CBN Turning Insert Uncoated, 12.9mm Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80° Diamond, Series Isoturn
Manufacturer Part #: 5700473
S/N: 45388592
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMA |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | IB55 |
| Coating/Finish | Bright/Uncoated |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | Isoturn |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Cubic Boron Nitride (CBN) |
| Insert Shape | Diamond |
| Insert Shape Code | C |
| Maximum Depth of Cut (mm) | 0.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0197 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (mm) | 12.90 |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | H, K |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Single or Multi Tipped | Single Tipped |
| Stocking Category | D |
| Chip Breaker | T |
| Insert Size Code | 431 |
