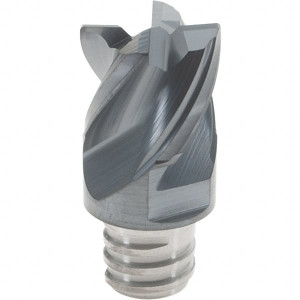

Iscar MMEC120E09R05CF4T08 Carbide End Mill Tip Insert TiAlN Finish, 4 Flutes, 12mm Diam, 9mm Depth, Series ChatterFree, Multimaster 5623028 - 45393378
Brand: Iscar- SKU:
- 45393378
- ID:
- 663870
$176.60
Iscar MMEC120E09R05CF4T08 Carbide End Mill Tip Insert TiAlN Finish, 4 Flutes, 12mm Diam, 9mm Depth, Series ChatterFree, Multimaster
Manufacturer Part #: 5623028
S/N: 45393378
UNSPSC: 23291601
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Milling Tip Type | Roughing |
| Milling Tip Style | MM EC-CF |
| Maximum Depth of Cut (Decimal Inch) | 0.3546 |
| Maximum Depth of Cut (mm) | 9 |
| Cutting Diameter (Decimal Inch) | 0.4728 |
| Cutting Diameter (mm) | 12.00 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM EC-CF |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0197 |
| Cutting Width (Decimal Inch) | 0.4728in |
| Functional Length (mm) | 16.50 |
| Functional Length (Decimal Inch) | 0.6501 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM EC120E09R05CF-4T08 |
| Extension From Holder (mm) | 16.50 |
| Lead Angle | 90 |
| Manufacturers Catalog Number | 5623028 |
| Chamfer Angle | 0degree |
| Overall Length (Decimal Inch) | 0.6501in |
| Insert Size | 120E09R05 |
| Helix Angle | 38 |
| Coolant Through | No |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3546in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 4 |
