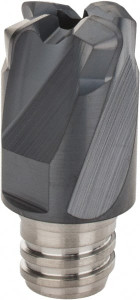

Iscar MMEFF120T4R184T08H Carbide End Mill Tip Insert TiAlN Finish, 4 Flutes, 12mm Diam, 0.6mm Depth, Series FeedMill, Multimaster 5607215 - 45393527
Brand: Iscar- SKU:
- 45393527
- ID:
- 663874
$184.16
Iscar MMEFF120T4R184T08H Carbide End Mill Tip Insert TiAlN Finish, 4 Flutes, 12mm Diam, 0.6mm Depth, Series FeedMill, Multimaster
Manufacturer Part #: 5607215
S/N: 45393527
UNSPSC: 23291601
(Minimum Order Quantity=2)
(Please order in multiples of 2)
Specifications:
| Milling Tip Type | High Feed |
| Milling Tip Style | MM EFF |
| Maximum Depth of Cut (Decimal Inch) | 0.0240 |
| Maximum Depth of Cut (mm) | 0.6 |
| Cutting Diameter (Decimal Inch) | 0.4720 |
| Cutting Diameter (mm) | 12.00 |
| Tool Material | Carbide |
| Manufacturer Grade | IC908 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | MM EFF |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 1.8000 |
| Cutting Width (Decimal Inch) | 0.4720in |
| Functional Length (Decimal Inch) | 0.6500 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Non-Ferrous Metal, Superalloys & Titanium, Hard Material |
| Primary Workpiece Material Code | P, M, K, N, S, H |
| Standards | ANSI |
| Milling Tip Full Description | MM EFF120T4R1.8-4T08H |
| Extension From Holder (mm) | 16.50 |
| Lead Angle | 97 |
| Manufacturers Catalog Number | 5607215 |
| Chamfer Angle | 48degree |
| Overall Length (Decimal Inch) | 0.6500in |
| Insert Size | 120T4R1.8 |
| Coolant Through | Yes |
| Material Grade | Sub Micrograin |
| Included Angle Degree | 83 |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0240in |
| UNSPSC Code | 23291601 |
| Number Of Flutes | 4 |
| Extension From Holder (Inch) | 0.6496 |
