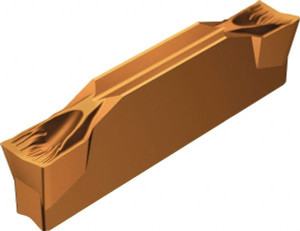

Sandvik Coromant R123F202500501-CF 1125 Carbide Cutoff Insert TiAlN Finish, 5° RH Lead Angle, RH Insert, 2.5mm Cutting Width, 0.15mm Corner Radius, Series CoroCut 1-2 5741483 - 45447075
Brand: Sandvik Coromant- SKU:
- 45447075
- ID:
- 647569
$51.05
Sandvik Coromant R123F202500501-CF 1125 Carbide Cutoff Insert TiAlN Finish, 5° RH Lead Angle, RH Insert, 2.5mm Cutting Width, 0.15mm Corner Radius, Series CoroCut 1-2
Manufacturer Part #: 5741483
S/N: 45447075
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Insert Style | R123x2 |
| Insert Size Code | F |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 1125 |
| Cutting Width (Decimal Inch) | 0.0984 |
| Cutting Width (mm) | 2.50 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Right Hand |
| Insert Hand | Right Hand |
| Lead Angle | 5 |
| Relief Angle | 7.00 |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Chipbreaker | CF |
| Series | CoroCut 1-2 |
| Coating Process | PVD |
| Overall Length (mm) | 19.85 |
| Overall Length (Decimal Inch) | 0.7815 |
| Manufacturers Catalog Number | R123F2-0250-0501-CF 1125 |
| Maximum Depth of Cut (mm) | 18.40 |
| Insert Seat Size | F |
| Full Radius | No |
| Maximum Depth of Cut (Decimal Inch) | 0.7244 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.0984 |
| Overall Width (mm) | 2.50 |
| Coating/Finish | TiAlN |
| UNSPSC Code | 23242105 |
