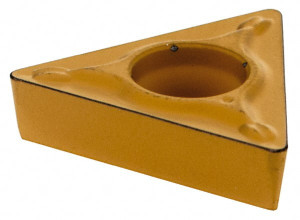

Sumitomo TCMT21.51ESU AC820P Carbide Turning Insert Al2O3 Finish, 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle 19RJBPR - 45482981
Brand: Sumitomo- SKU:
- 45482981
- ID:
- 677316
$13.78
Sumitomo TCMT21.51ESU AC820P Carbide Turning Insert Al2O3 Finish, 1/4" Inscribed Circle, 1/64" Corner Radius, 60° Triangle
Manufacturer Part #: 19RJBPR
S/N: 45482981
UNSPSC: 23242105
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 60.0 |
| Manufacturer Grade | AC820P |
| Coating/Finish | Al2O3 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Series | TC |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Material | Solid Carbide |
| Insert Shape | Triangle |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.4331 |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Ansi Code | TCMT21.51ESU |
| Iso Code | TCMT110204N-SU |
| Standards | ANSI, ISO 13399 |
| Chip Breaker | ESU |
| Rake Angle | 8 |
| Insert Size Code | 21.51 |
