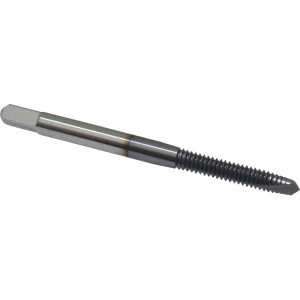

Cleveland Twist Drill Spiral Point Tap: #8-32, UNF, 2 Flutes, Plug, 2B, High Speed Steel, TiCN Finish 3/8" Thread Length, 2-1/8" OAL, Right Hand, H3, Series 1011TICN C55380 - 45729803
Brand: Cleveland Twist Drill- SKU:
- 45729803
- ID:
- 773139
$23.90
Cleveland Twist Drill Spiral Point Tap: #8-32, UNF, 2 Flutes, Plug, 2B, High Speed Steel, TiCN Finish 3/8" Thread Length, 2-1/8" OAL, Right Hand, H3, Series 1011TICN
Manufacturer Part #: C55380
S/N: 45729803
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | #8-32 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 2 |
| Material Application | Cast Iron, Stainless Steel, Steel |
| Oversize | No |
| Threads per Inch | 32 |
| Overall Length (Inch) | 2-1/8 |
| Overall Length (Decimal Inch) | 2.1300 |
| Overall Length (mm) | 54.10 |
| Thread Length (Decimal Inch) | 0.3800 |
| Thread Length (Inch) | 3/8 |
| Shank Diameter (mm) | 4.27 |
| Shank Diameter (Decimal Inch) | 0.1680 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.3900 |
| Neck Length (Inch) | 25/64 |
| Square Size (mm) | 3.33 |
| Series | 1011TICN |
