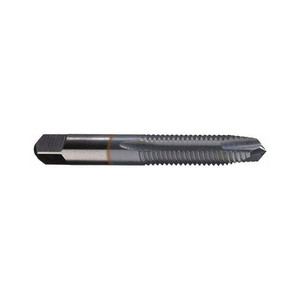

Cleveland Twist Drill Spiral Point Tap: 1/2-13, UNF, 3 Flutes, Plug, 2B, High Speed Steel, TiCN Finish 15/16" Thread Length, 3-3/8" OAL, Right Hand, H3, Series 1011TICN C55394 - 45729852
Brand: Cleveland Twist Drill- SKU:
- 45729852
- ID:
- 773149
$48.25
Cleveland Twist Drill Spiral Point Tap: 1/2-13, UNF, 3 Flutes, Plug, 2B, High Speed Steel, TiCN Finish 15/16" Thread Length, 3-3/8" OAL, Right Hand, H3, Series 1011TICN
Manufacturer Part #: C55394
S/N: 45729852
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/2-13 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Limit | H3 |
| Class Of Fit | 2B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Cast Iron, Stainless Steel, Steel |
| Oversize | No |
| Threads per Inch | 13 |
| Overall Length (Inch) | 3-3/8 |
| Overall Length (Decimal Inch) | 3.3800 |
| Overall Length (mm) | 85.85 |
| Thread Length (Decimal Inch) | 0.9400 |
| Thread Length (Inch) | 15/16 |
| Shank Diameter (mm) | 9.32 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.7300 |
| Neck Length (Inch) | 47/64 |
| Square Size (mm) | 6.99 |
| Series | 1011TICN |
