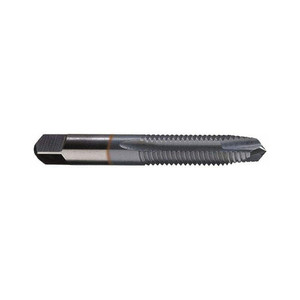

Cleveland Twist Drill Spiral Point Tap: 1/4-28, UNF, 3 Flutes, Plug, 2B, High Speed Steel, TiCN Finish 5/8" Thread Length, 2-1/2" OAL, Right Hand, H2, Series 1011TICN C55387 - 45729928
Brand: Cleveland Twist Drill- SKU:
- 45729928
- ID:
- 773179
$26.65
Cleveland Twist Drill Spiral Point Tap: 1/4-28, UNF, 3 Flutes, Plug, 2B, High Speed Steel, TiCN Finish 5/8" Thread Length, 2-1/2" OAL, Right Hand, H2, Series 1011TICN
Manufacturer Part #: C55387
S/N: 45729928
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Thread Size (Inch) | 1/4-28 |
| Thread Standard | UNF |
| Chamfer | Plug |
| Material | High Speed Steel |
| Thread Limit | H2 |
| Class Of Fit | 2B |
| Coating/Finish | TiCN |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Material Application | Cast Iron, Stainless Steel, Steel |
| Oversize | No |
| Threads per Inch | 28 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Thread Length (Decimal Inch) | 0.6300 |
| Thread Length (Inch) | 5/8 |
| Shank Diameter (mm) | 6.48 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Application | Through-Hole Threading |
| Neck Length (Decimal Inch) | 0.3900 |
| Neck Length (Inch) | 25/64 |
| Square Size (mm) | 4.85 |
| Series | 1011TICN |
