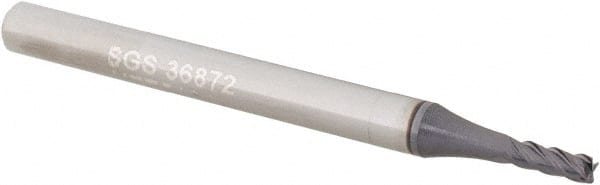

KYOCERA SGS 1/16" Diam 4 Flute Solid Carbide 0.005" Corner Radius End Mill Ti-NAMITE-X Finish, 1-1/2" OAL, 3/16" LOC, 1/8" Shank Diam, Variable° Helix, RH Cut, RH Flute, Centercutting 36872 - 45857356
Brand: KYOCERA SGS- SKU:
- 45857356
- ID:
- 618101
$37.33
KYOCERA SGS 1/16" Diam 4 Flute Solid Carbide 0.005" Corner Radius End Mill Ti-NAMITE-X Finish, 1-1/2" OAL, 3/16" LOC, 1/8" Shank Diam, Variable° Helix, RH Cut, RH Flute, Centercutting
Manufacturer Part #: 36872
S/N: 45857356
UNSPSC: 27112803
UPC: 691781368726
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Mill Diameter (Inch) | 1/16 |
| Mill Diameter (Decimal Inch) | 0.0625 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 3/16 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | TX |
| Overall Length (Inch) | 1-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0050 |
| Variable Index | Yes |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 1.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5748 |
| Length Type | Long |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Corner Radius Tolerance | +0.00000 to -0.00100 in |
| Mill Diameter Tolerance | -0.0003 to 0.0003 in |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium |
| Primary Workpiece Material Code | P, M, K, S |
| UNSPSC Code | 27112803 |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Series | ZPCR |
| Material Application | Steel, Stainless Steel, Cast Iron, Superalloys & Titanium, Hard Material |
| For Use With. | End Mill Holders |
| Helix Style | Variable |
