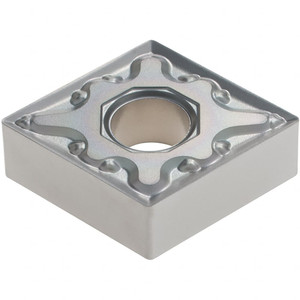

Walter Tools CNMG431-MM5 WSM20S Carbide Turning Insert TiALN/Al2O3 Finish, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.016" Corner Radius, 3/16" Thick, 80° Diamond, Series CNMG 7251896 - 46472668
Brand: Walter Tools- SKU:
- 46472668
- ID:
- 678595
$24.55
Walter Tools CNMG431-MM5 WSM20S Carbide Turning Insert TiALN/Al2O3 Finish, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.016" Corner Radius, 3/16" Thick, 80° Diamond, Series CNMG
Manufacturer Part #: 7251896
S/N: 46472668
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80degree |
| Manufacturer Grade | WSM20S |
| Coating/Finish | TiCN, Al2O3, Al |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Series | CNMG-MM5 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80 |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.5080 |
| Insert Holding Method | Clamp, Pin |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.5080 |
| Primary Workpiece Material | Stainless Steel, Superalloys & Titanium |
| Primary Workpiece Material Code | M, S |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Iso Code | CNMG120404-MM5 WSM20S |
| Standards | ANSI, ISO |
| Manufacturers Catalog Number | 7251896 |
| Material Grade | M20, S20, P20 |
| Proprietary Coating Designation | WSM20S |
| Lead Angle | 80degree |
| Coating Classification | PVD |
| Chip Breaker | MM5 |
| Rake Angle | 20 |
| Cutting Edge Style | Chamfered & Honed |
| Industry Standard Number | CNMG431-MM5 WSM20S |
| Width (Decimal Inch - 4 Decimals) | 0.5080in |
| Width (mm - 2 Decimals) | 12.90 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Turning, Facing, Boring |
| UNSPSC Code | 23242105 |
| Insert Size Code | 431 |
