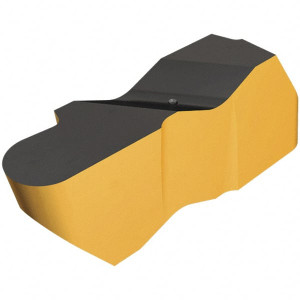

Iscar INR2031LIC807 Carbide Grooving Insert TiAlN/TiN Finish, LH, Series Notch-Grip 6412069 - 46700241
Brand: Iscar- SKU:
- 46700241
- ID:
- 649342
$39.47
Iscar INR2031LIC807 Carbide Grooving Insert TiAlN/TiN Finish, LH, Series Notch-Grip
Manufacturer Part #: 6412069
S/N: 46700241
UNSPSC: 23242105
(Minimum Order Quantity=10)
(Please order in multiples of 10)
Specifications:
| Insert Style | INR |
| Insert Size Code | 2031 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.79 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC807 |
| Corner Radius (Decimal Inch) | 0.0307 |
| Corner Radius (mm) | 0.78 |
| Rake | Positive |
| Insert Size | 2031 |
| Material Grade | Submicron |
| Lead Angle | 3 |
| Multi-use Tool | Yes |
| Series | Notch-Grip |
| Coating Process | PVD |
| Rake Angle | 3.00 |
| Overall Length (Decimal Inch) | 0.5140 |
| Overall Length (mm) | 12.95 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | H, K, M, P, S |
| Iso Code | INR2031L IC807 |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | 6412069 |
| Coating/Finish | TiAlN, TiN |
