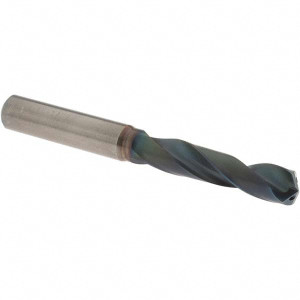

OSG 9.3mm 140° Solid Carbide Screw Machine Drill Bit WD1 Finish, 47mm Flute Length, 89mm OAL, Through Coolant HP253-3661 - 46810602
Brand: OSG USA, INC.- SKU:
- 46810602
- ID:
- 739323
$118.00
OSG 9.3mm 140° Solid Carbide Screw Machine Drill Bit WD1 Finish, 47mm Flute Length, 89mm OAL, Through Coolant
Manufacturer Part #: HP253-3661
S/N: 46810602
UNSPSC: 23241635
(Minimum Order Quantity=1, Package Quantity=1)
Specifications:
| Drill Bit Size (mm) | 9.30 |
| Drill Bit Size (Decimal Inch) | 0.3661 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Primary Workpiece Material | Steel, Alloy Steel, Cast Iron |
| Overall Length (mm) | 89.00 |
| Shank Diameter (mm) | 10.00 |
| Series | HP253 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.006 to +0.021 mm |
| Flute Length (mm) | 47.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Drill Bit Size Range (mm) | 8.00 to 9.50 |
